Integrated Buildings

Our Company provides electronic monitoring, controls, communications, tracking, and collision

avoidance systems as well as industrial buildings, circuit breakers, dry-type transformers, automation integration, and fully Integrated Buildings.  Our facilities are second to non.  Our shop has more than

1/2 Million Sq. Ft. of covered production facilities.  Over 250 Employees including 25+ Engineering and Technical Personnel..  57+ years of manufacturing automation experience.  100+ Ton lifting capacity

80 & 30 Ton RTG Cranes.  High Voltage Testing Facility.  Turret Punches, Lasers, Forming Machines, Robotic

Welders, Printers, Paint Booths, and many other manufacturing tools.  Electrical, mechanical, transformer, and magnetics engineers on staff.  Flexible engineering designs to meet the unique needs of every project.

3 D modeling and AutoCAD designs.  ISO9000 Compliant Design, Process, and Testing.  UL 508A panel shop

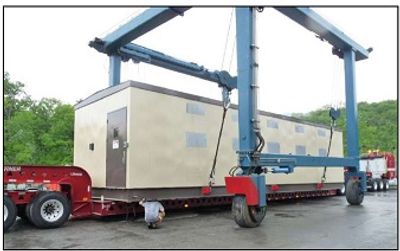

VFD, PLC, and HMI trained technicians for automation integrations and programming. AWS/ASME/API certified weldersSee pictures of our crane that can move our competitions entire shop down the road!

Our buildings are manufactured from raw flat steel. Two standard wall panels types 16 GA overlapping panels or 12 GA seam welded (11GA available).  Various wall heights available...  110” and 120” are standard

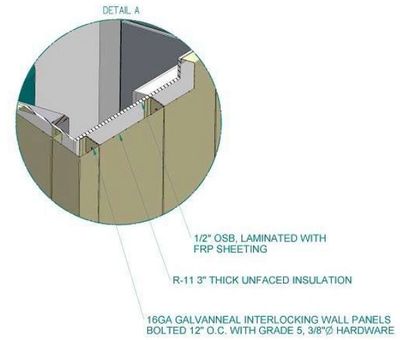

and up to 144” Wall height are  available.  Insulation: Fiberglass Batt R-13 Standard Polyisocyanurate Foam Board Interior Walls/skins.  16 GA cold rolled steel standard...  OSB, FRP and other materials available if needed.  We bend our panels at our shop extremely strong interlocking walls.  We are able to use the following materials to construct our buildings:  Carbon Steel, Stainless Steel, Mild, or Galvanized...  Our competition literally purchase pop-canned buildings.  Our competition is beholden to a predetermined size and shape were we are not beholden to any customization that our customers may need.  For example we make our own skids and flooring which enables us to put custom wire ways in our flooring.  Please see Picture which shows our building panel design.

• Gas Quality Buildings:  Gas Chromatograph Analyzer, Moisture Analyzer, Oxygen Analyzer, H2S      Analyzers, Total Sulfur Analyzers, Hydrocarbon Dew Point Analyzers, Mercury Analyzers,  Siloxane Analyzers, Gas Detection, RTU & PLC Integration, Communications Integration, Internal - External Lighting, HVAC, Electrical, & Skid Mounted

                               Applications:  Critical Measurement Points...  Often at Bio Gas or Natural Gas Sales Points.

                                                                     Also are use at processing facilities...   Often seen in safety applications.

                          Classifications:    Class 1 Div. 1                            Class 1 Div. 2                      General Purpose

               Stamps Certificates:    PE Stamps                State Certificates Inspections          (As Needed)

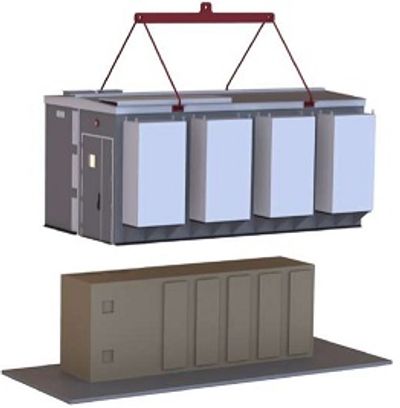

• Dobe Constructed Building:  Is a floorless fully integrated building than can be set over any existing equipment.  Dobe option gives you an extreme cost saving option.  We build the Dobe at the shop in a controled environment just as we would with any other Integrated Building.  We would have everything in place and ready for connection once the building has been set by a crane and fastened to the ground.

                             Applications:   Existing Stations...  Measurement & Regulation Station, Compression Stations

                        Classifications:    Class 1 Div. 1                            Class 1 Div. 2                      General Purpose

              Stamps Certificates:    PE Stamps                State Certificates Inspections          (As Needed)

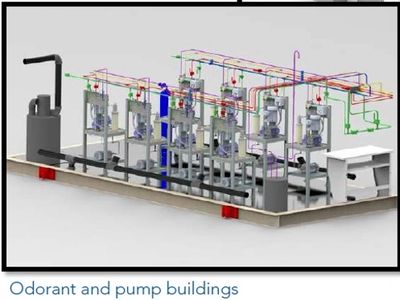

• Odorant & Pump Building:  Integrated with YZ odorizers & Pumps.  Made to isolate any possible

                                                                              leakage from neighbors that may be close by.  Welded SS Tubing w/

                                                                              no fittings to prevent mercaptan leaks.  Provides a sealed mercaptan

                                                                              injection system.

                                               Applications:  Odorant Injection Applications

                                           Classifications:    Class 1 Div. 1                            Class 1 Div. 2                      General Purpose

                                Stamps Certificates:    PE Stamps                State Certificates Inspections          (As Needed)

• Other Applications include:    Pipeline monitoring stations, Compressor control buildings

                                                                                  Telemetry stations, Odorant injection buildings, Measurement &

                                                                                  Regulation buildings,  RTU Buildings, Auxiliary buildings, Glycol

                                                                                  pump injection buildings, Storage buildings
